OEM YZ38S032-1207B-12VA 230VAC 115VAC EI Type PCB transformer 220v

We produce Encapsulated Transformer, High frequency switching transformer, Low frequency power transformer, inductor and current transformer.

Home / Products / PCB Encapsulated Transformer / EI30 3.2VA PCB Encapsulated Transformer / YZ38S032-1207B-12VA 230VAC 115VAC EI Type PCB transformer 220v

EI30 3.2VA PCB Encapsulated Transformer

  • YZ38S032-1207B-12VA 230VAC 115VAC EI Type PCB transformer 220v
  • YZ38S032-1207B-12VA 230VAC 115VAC EI Type PCB transformer 220v
  • YZ38S032-1207B-12VA 230VAC 115VAC EI Type PCB transformer 220v

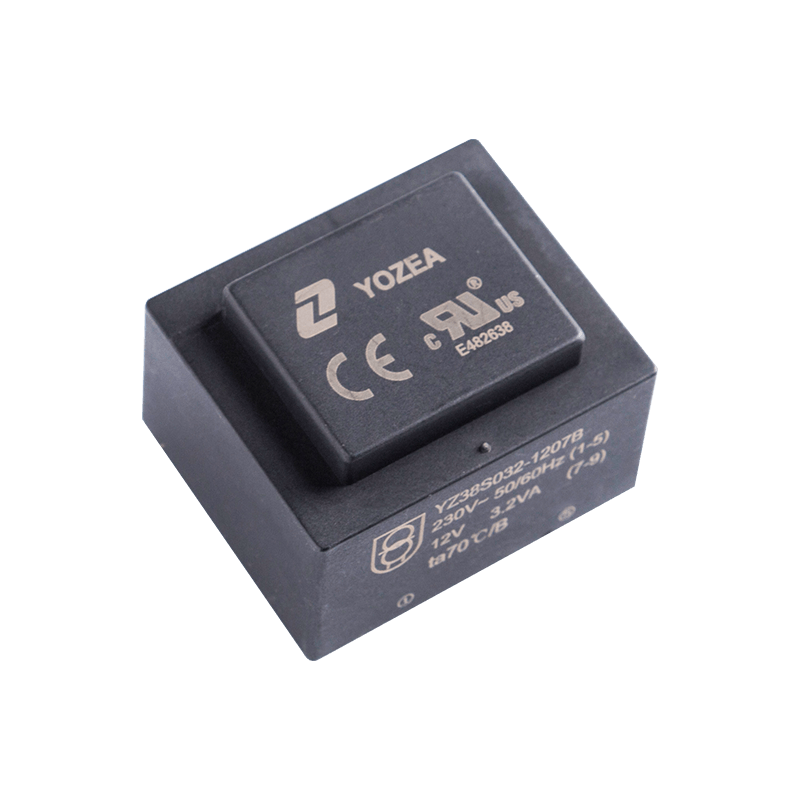

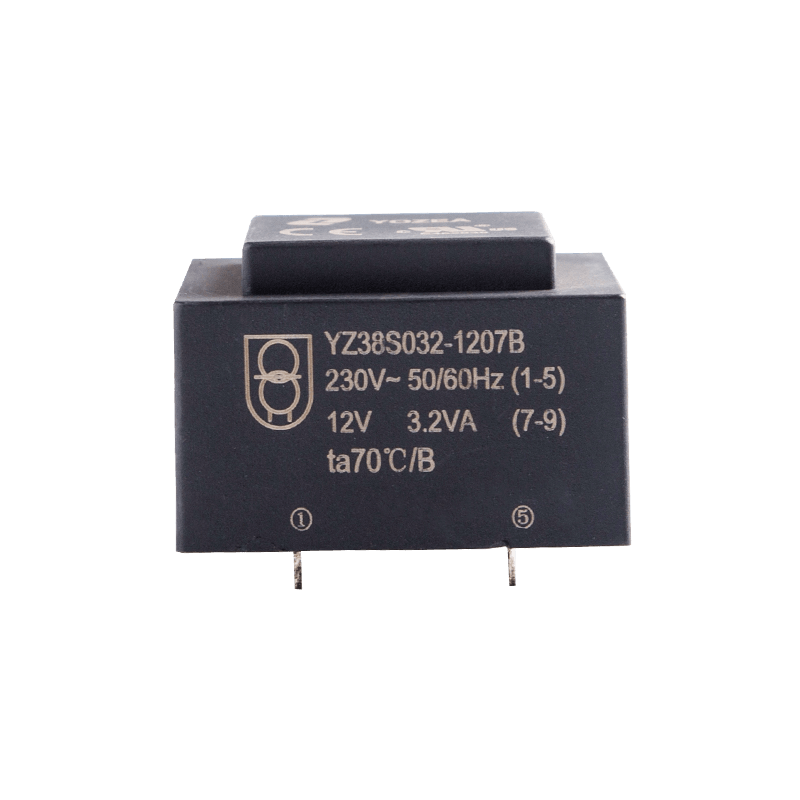

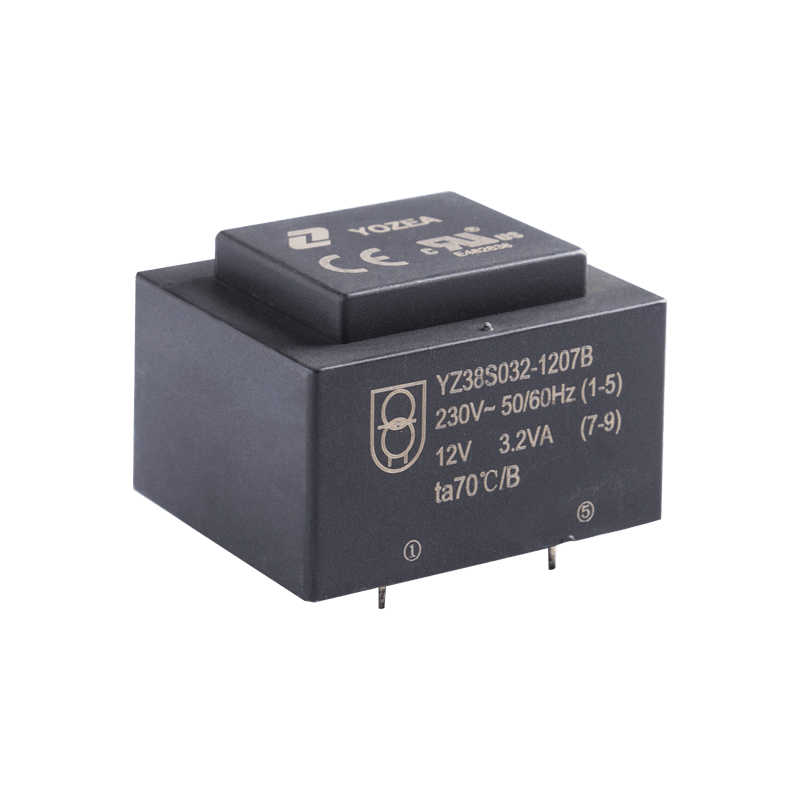

YZ38S032-1207B-12VA 230VAC 115VAC EI Type PCB transformer 220v

· Core Type EI 38/13.6

· Rated Power Output - 3.2VA

· Input voltage - 230V/115V/115VX2,50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 000Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 150g

medical device/ Vessel/ Clean energy
Contact Us Inquiry PDF Download

(86)0571-85229813

[email protected]

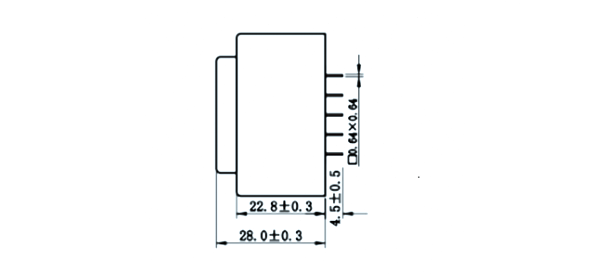

DIMENSIONS [MM:]

Front View

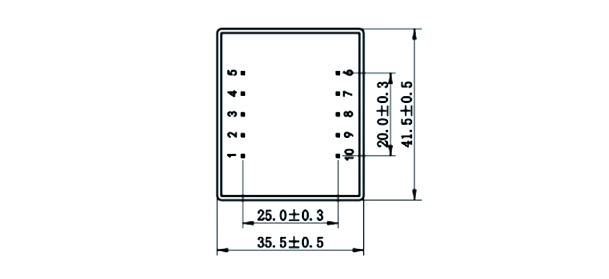

DIMENSIONS [MM:]

Bottom View

Primary Voltage 115V

Part Number

Primary   (v)

Secondary   (V)

Secondary   (mA)

No-   LoadVoltage   (V)

Schematic   No.

Ambient   Temperature

YZ38US032-0607B

115

6

533.3

8.0

1

ta70/B

YZ38US032-0907B

115

9

355.6

12.0

1

ta70/B

YZ38US032-1207B

115

12

266.7

16.0

1

ta70/B

YZ38US032.1507B

115

15

213.3

20.0

1

ta70/B

YZ38US032-1807B

115

18

177.8

24.0

1

ta70/B

YZ38US032-2407B

115

24

133.3

32.0

1

ta70/B

YZ38UD032-0607B

115

2X6

2X266.7

2X8.0

2

ta70/B

YZ38UD032-0757B

115

2X7.5

2X213.3

2X10.0

2

ta70/B

YZ38UD032-0907B

115

2X9

2X177.8

2X12.0

2

ta70/B

YZ38UD032-1207B

115

2X12

2X133.3

2X16.0

2

ta70/B

YZ38UD032-1507B

115

2X15

2X106.7

2X20.0

2

ta70/B

YZ38UD032-1807B

115

2X18

2X88.9

2X24.0

2

ta70/B

YZ38UD032-2407B

115

2X24

2X66.7

2X32.0

2

ta70/B


Primary Voltage 115V X 2

Part Number

Primary   (V)

Secondary   (V)

Secondary   (mA)

No-   LoadVoltage   (V)

Schematic   No.

Ambient   Temperature

YZ38XD032-0607B

2X115

2X6

2X266.7

2X8.0

3

ta 70/B

YZ38XD032-0907B

2X115

2X9

2X177.8

2X12.0

3

ta 70/B

YZ38XD032-1207B

2X115

2X12

2X133.3

2X16.0

3

ta 70/B

YZ38XD032-1507B

2X115

2X15

2X106.7

2X20.0

3

ta 70/B

YZ38XD032-1807B

2X115

2X18

2X88.9

2X24.0

3

ta 70/B

YZ38XD032-2407B

2X115

2X24

2X66.7

2X32.0

3

ta 70/B


Primary Voltage 230V

Part Number

Primary   (V)

Secondary   (V)

Secondary   (mA)

No-   LoadVoltage   (V)

Schematic   No.

Ambient   Temperature

YZ38S032-0607B

230

6

533.3

8.0

1

ta70/B

YZ38S032-0907B

230

9

355.6

12.0

1

ta70/B

YZ38S032-1207B

230

12

266.7

16.0

1

ta70/B

YZ38S032-1507B

230

15

213.3

20.0

t

ta70/B

YZ38S032-1807B

230

18

177.8

24.0

t

ta 70/B

YZ38S032-2407B

230

24

133.3

32.0

1

ta70/B

YZ38D032-0607B

230

2X6

2X266.7

2X8.0

2

ta70/B

YZ38D032-0757B

230

2X7.5

2X213.3

2X10.0

2

ta70/B

YZ38D032-0907B

230

2X9

2X177.8

2X12.0

2

ta70/B

YZ38D032-1207B

230

2X12

2X133.3

2X16.0

2

ta70/B

YZ38D032-1507B

230

2X15

2X106.7

2X20.0

2

ta70/B

YZ38D032-1807B

230

2X18

2X88.9

2X24.0

2

ta70/B

YZ38D032-2407B

230

2X24

2X66.7

2X32.0

2

ta70/B

Product description:

Our product is a 12VA (volt-ampere) transformer designed to be used in digital circuits. It operates with an enter voltage of 230VAC (volts alternating contemporary) or 115VAC, making it flexible for one of a kind energy supply necessities. The transformer follows an EI (E-core and I-middle) type design, which is a not unusual configuration for transformers. The E-center and I-center refer to the shapes of the core laminations used inside the transformer, presenting efficient magnetic coupling.
Key specifications of your product include:
1. Power Rating: 12VA
2. Input Voltage Options: 230VAC or 115VAC
3. Transformer Type: EI Type
4. PCB Mountable: Designed for easy integration onto published circuit forums (PCBs)
five. Primary Voltage Options: 220V
This transformer is suitable for diverse applications in which voltage conversion or isolation is needed, inclusive of in power components, digital gadgets, and different electrical systems. Its compact size and PCB mountability make it handy for integration into electronic circuits. The 220V number one voltage alternative provides flexibility for users in areas with that unique voltage requirement.

YZ38S032-1207B-12VA 230VAC 115VAC EI Type PCB transformer 220v

 YZ38S032-1207B-12VA 230VAC 115VAC EI Type PCB transformer 220v

· Core Type EI 38/13.6

· Rated Power Output - 3.2VA

· Input voltage - 230V/115V/115VX2,50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 000Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 150g

ENCAPSULATED
TRANSFORMERS (3.2VA) EI38

We are a professional transformer manufacturer.

Hangzhou Yozea Electronic Co.,LTD is fast growing YZ38S032-1207B-12VA 230VAC 115VAC EI Type PCB transformer 220v suppliers and manufacturer in China, specialized in manufacturing encapsulated transformer, high frequency transformer and inductor in China. we are located in Hangzhou with 260 employees, 50 technical engineers and quality control team, the production and operation area reaches 6000 square meters. Products are widely used in intelligent meters, intelligent collection terminals, smart homes, instruments, industry power supply, new energy vehicles, and oter fields. We got the CQC, VDE, CE, UL, RoHS and other certificates successively. You can OEM YZ38S032-1207B-12VA 230VAC 115VAC EI Type PCB transformer 220v direct from us.

We focus on developing high-quality products for top-end markets. And our products are mainly exported to over 30 countries such as USA, Italy, Canada, Egypt, Netherlands，Mexico，Greece，Iran, India, Thailand, Russia, France, Turkey, New Zealand, Israel and etc.

Certifications

UL, ROHS, VDE, CQC, CE, IATF16949,
ISO09001:2005, With UL, ROHS, VDE, CQC, CE,
IATF16949, ISO09001:2005 and other certificates

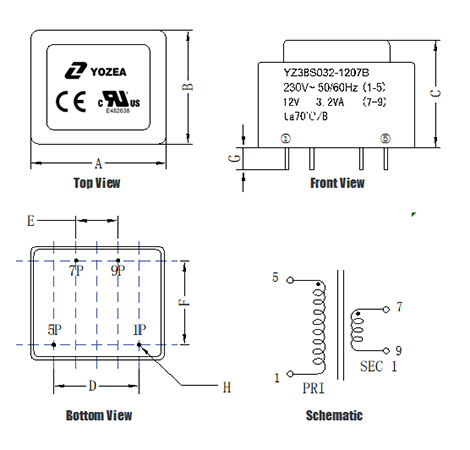

1.CONFIGURATION ＆ DIMENSION：m/m


A B C D E F G H
41.5±0.5 35.5±0.5 28.0±0.5 20.0±0.3 10.0±0.3 25.0±0.3 3.5±0.5 SQ0.7×0.7
2.ELECTRONIC CHARACTER：
Input
Voltage
VAC		 Input Power
No Load
(Pi)VA		 Input Power
Load
(Pi)VA		 Pri Current
No Load
(Ii)mA		 Sec Voltage
No Load
(Vo)VAC		 Sec
Voltage
(Vo)VAC		 Sec
Current
(Io)mA		 Output
Power
VA
230V ≤1.2W ≤5.5W ≤15.0mA 16.0V±10% 12.0V±10% 267mA(7-9) 3.2VA



3.INSULATION RESISTANCE:
THE INSULATION RESISTANCE BETWEEN COIL TO COIL AND COIL TO CORE IS OVER 100MΩ AT DC 500V.
4.DIELECTRIC STRENGTH:
A.3750V AC 50Hz 5mA BETWEEN PRI TO SEC FOR 60 SEC.
5.MATERIAL LIST:
NO. ITEM MATERIAL MANUFACTURER UL
1 CORE AH1000 JIANGYIN HENGTONG ELECTRIC APPLIANCES CO LTD OR VARIOUS
2 BOBBIN 1403G(a) NAN YA PLASTICS CORP PLASTICS 3RD DIV E130155
3 ENCLOSURE 1403G(a) NAN YA PLASTICS CORP PLASTICS 3RD DIV E130155
4 WIRE MW 79-C 155 ZHEJIANG LANGLI ELECTRIC EQUIPMENTS CO LTD E222214
5 POTTING COMPOUND 21-2350-(XX) RAMPF POLYMER SOLUTIONS GMBH ＆ CO KG E111148

Max Ambient
Temperature		 Enameled Wire
Temperature Rating		 Input Voltage
Range		 Transformer
Temperature Rise
ta 70℃ 2UEW/155℃ 230VAC±20% ≤35K

SPECIFICATION FOR APPROVAL
PART NO PART NAME DATE PAGE
YZ38S032-1207B EI38-13.5 2018/2/6 1/1
Hangzhou Yozea Electronic Co.,Ltd
TEL:0571-85229805/FAX:0571-85229815
E-MAIL: [email protected]
http://www.yozea.com		 APP. CHECK DRAWN
