OEM YZ42S080-1207B-EI38 3.2VA Low Frequency YOZEA Brand small size pcb transformer

We produce Encapsulated Transformer, High frequency switching transformer, Low frequency power transformer, inductor and current transformer.

Home / Products / PCB Encapsulated Transformer / EI42 8VA PCB Encapsulated Transformer / YZ42S080-1207B-EI38 3.2VA Low Frequency YOZEA Brand small size pcb transformer

EI42 8VA PCB Encapsulated Transformer

  • YZ42S080-1207B-EI38 3.2VA Low Frequency YOZEA Brand small size pcb transformer
  • YZ42S080-1207B-EI38 3.2VA Low Frequency YOZEA Brand small size pcb transformer
  • YZ42S080-1207B-EI38 3.2VA Low Frequency YOZEA Brand small size pcb transformer

YZ42S080-1207B-EI38 3.2VA Low Frequency YOZEA Brand small size pcb transformer

· Core Type EI 40/20

· Rated Power Output - 8VA

· Input voltage - 230V/115V/115VX2, 50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 000Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 260g

Elevator panel/ Air conditioning panel/ Electric awning
Contact Us Inquiry PDF Download

(86)0571-85229813

[email protected]

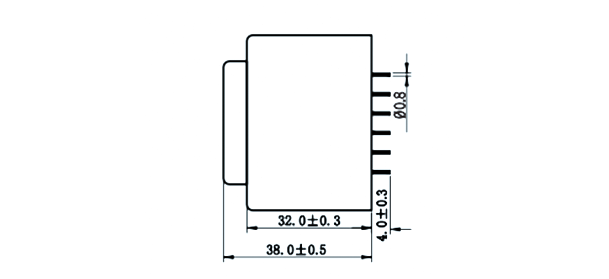

DIMENSIONS [MM:]

Front View

DIMENSIONS [MM:]

Bottom View

Primary Voltage 115V

Part Number

Primary   (V)

Secondary   (V)

Secondary   (mA)

No-   LoadVoltage   (V)

Schematic   No.

Ambient   Temperature

YZ42US080-0607B

115

6

1333.3

7.8

1

ta70/B

YZ42US080-0907B

115

9

888.9

11.7

1

ta70/B

YZ42US080-1207B

115

12

666.7

15.6

1

ta70/B

YZ42US080-1507B

115

15

533.3

19.5

1

ta70/B

YZ42US080-1807B

115

18

444.4

23.4

1

ta 70/B

YZ42US080-2407B

115

24

333.3

31.2

1

ta70/B

YZ42UD080-0607B

115

2X6

2X666.7

2X7.8

2

ta70/B

YZ42UD080-0757B

115

2X7.5

2X533.3

2X9.8

2

ta70/B

YZ42UD080-0907B

115

2X9

2X444.4

2X11.7

2

ta70/B

YZ42UD080-1207B

115

2X12

2X333.3

2X15.6

2

ta70/B

YZ42UD080-1507B

115

2X15

2X266.7

2X19.5

2

ta70/B

YZ42UD080-1807B

115

2X18

2X222.2

2X23.4

2

ta70/B

YZ42UD080-2407B

115

2X24

2X166.7

2X31.2

2

ta70/B



Primary Voltage 115V X 2

Part Number

Primary   (V)

Secondary   (V)

Secondary   (mA)

No-   LoadVoltage   (V)

Schematic   No.

Ambient   Temperature

YZ42XD080-0607B

2X115

2X6

2X666.7

2X7.8

3

ta70/B

YZ42XD080-0907B

2X115

2X9

2X444.4

2X11.7

3

ta70/B

YZ42XD080-1207B

2X115

2X12

2X333.3

2X15.6

3

ta70/B

YZ42XD080-1507B

2X115

2X15

2X266.7

2X19.5

3

ta70/B

YZ42XD080-1807B

2X115

2X18

2X222.2

2X23.4

3

ta70/B

YZ42XD080-2407B

2X115

2X24

2X166.7

2X31.2

3

ta70/B

Primary Voltage 230V

Part Number

Primary   (V)

Secondary   (V)

Secondary   (mA)

No-   LoadVoltage   (V)

Schematic   No.

Ambient   Temperature

YZ42S080-0607B

230

6

1333.3

7.8

1

ta70/B

YZ42S080-0907B

230

9

888.9

11.7

1

ta70/B

YZ42S080-1207B

230

12

666.7

15.6

1

ta70/B

YZ42S080-1507B

230

15

533.3

19.5

1

ta70/B

YZ42S080-1807B

230

18

444.4

23.4

1

ta70/B

YZ42S080-2407B

230

24

333.3

31.2

1

ta 70/B

YZ42D080-0607B

230

2X6

2X666.7

2X7.8

2

ta70/B

YZ42D080-0757B

230

2X7.5

2X533.3

2X9.8

2

ta70/B

YZ42D080-0907B

230

2X9

2X444.4

2X11.7

2

ta70/B

YZ42D080-1207B

230

2X12

2X333.3

2X15.6

2

ta70/B

YZ42D080-1507B

230

2X15

2X266.7

2X19.5

2

ta70/B

YZ42D080-1807B

230

2X18

2X222.2

2X23.4

2

ta70/B

YZ42D080-2407B

230

2X24

2X166.7

2X31.2

2

ta70/B

Product description:

The 3.2VA Low Frequency YOZEA Brand Small Size PCB Transformer, is a compact and efficient transformer designed for diverse digital programs. With a energy rating of three.2VA, it gives reliable overall performance at the same time as maintaining a low frequency. The YOZEA brand guarantees quality and sturdiness in electronic components.
This transformer's small length makes it suitable for area-constrained programs, especially the ones related to printed circuit forums (PCBs). Its design is optimized for green strength transfer and dependable operation, making it a precious aspect for digital devices.
Whether utilized in consumer electronics, business gadget, or other electronic systems, the three.2VA Low Frequency YOZEA Brand Small Size PCB Transformer gives a dependable and space-green answer for power conversion wishes.

YZ42S080-1207B-EI38 3.2VA Low Frequency YOZEA Brand small size pcb transformer

 YZ42S080-1207B-EI38 3.2VA Low Frequency YOZEA Brand small size pcb transformer

· Core Type EI 40/20

· Rated Power Output - 8VA

· Input voltage - 230V/115V/115VX2, 50/60Hz

· Insulation class - Class B (130°C)

· Ambient temperature (ta)- 70°C

· Dielectric strength - 4, 000Vrms

·Inherently short-circuit-proof

· Self-extinguishing material

· Potted under vacuum

· Weight: 260g

ENCAPSULATED
TRANSFORMERS (8VA) EI42
