UF Common Mode Inductor

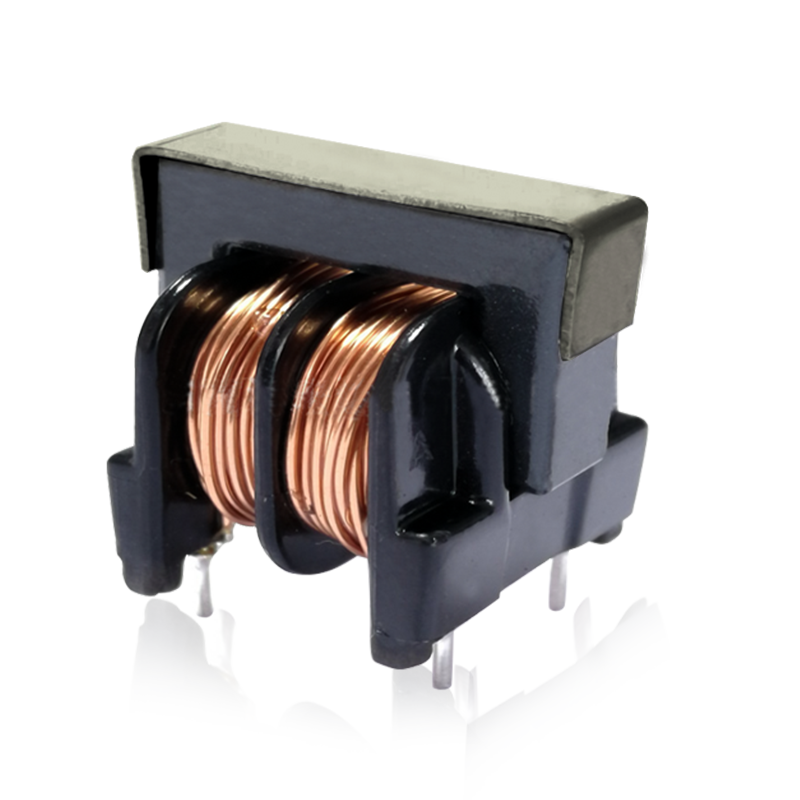

UF series Variable Common Mode Choke Inductors

Product parameters:

Ac power filter inductor can effectively control the common-mode

interference from switch power

High magnetic conductivity and inpedance by using ET magnetic core

Standard:

RoHS

UL 94 v-0

Complient with RoHS

Plastic materials meet UL 94 V-O requirements

Motor drive and control / Hybrid Electric Vehicle/ driving assistance system

Twitter
Youtube
Facebook

(86)0571-85229813

[email protected]

Type	Structure Type	Dimension(mm)	(uH MIN)	Core Size
YZDUF100N0908	Vertical	16x10.5x16	1	UF9.8
YZDUF353N1010	Vertical	19x17x22	10	UF10.5
VZDUF403N1010	Vertical	19x17x22	13	UF10.5
YZDUF453N1010	Vertical	19x17x22	16	UF10.5
YZDUF503N1010	Vertical	19x17x22	35	UF10.5
YZDUF253N1010	Vertical	24x19x28	60	UF16
YZDUF303N1010	Vertical	24x19x28	70	UF16
YZDUF353N1010	Vertical	24x19x28	100	UF16
YZDUF403N1010	Vertical	24x19x28	100	UF16
YZDUF453N1010	Vertical	34x20x33	130	UF21
VZDUF503N1010	Vertical	34x20x33	250	UF21
VZDUF603N1010	Vertical	34x20x33	150	UF21
YZDUF703N1010	Vertical	34x20x33	350	UF21

Product description:

The UF Series Variable Common Mode Choke Inductors are designed to feature as AC electricity filter out inductors, with a focal point on efficiently controlling commonplace-mode interference originating from transfer power sources. These inductors are engineered with excessive magnetic conductivity and impedance, finished via the usage of an ET magnetic core.

Key parameters and features of the UF Series Variable Common Mode Choke Inductors include:

1. **Common-Mode Interference Control:** These inductors are specially designed to control not unusual-mode interference, specifically from transfer power assets. This facilitates in ensuring a cleaner and extra strong power supply.

2. **ET Magnetic Core:** The inductors include an ET magnetic core, contributing to excessive magnetic conductivity and impedance. This core type is selected for its effectiveness in handling magnetic residences.

3. **Standard Compliance:**

- **RoHS:** The UF Series Variable Common Mode Choke Inductors follow the Restriction of Hazardous Substances (RoHS) directive, making sure that the product is unfastened from sure unsafe substances.

- **UL ninety four V-zero:** The product meets the UL 94 V-0 widespread, indicating a excessive level of flame retardancy for plastic materials used in its production.

4. **Plastic Material Compliance:** The plastic materials used in the construction of these inductors meet the UL 94 V-zero requirements, similarly emphasizing safety and hearth resistance.

5. **Applications:**

- **Motor Drive and Control:** The inductors are appropriate for applications associated with motor drive and manage systems.

- **Hybrid Electric Vehicle (HEV):** They find use in HEV systems, contributing to efficient electricity control in hybrid vehicles.

- **Driving Assistance System:** The inductors are applicable in using help structures, wherein retaining a reliable and interference-free electricity supply is essential.

UF series Variable Common Mode Choke Inductors

We are a professional transformer manufacturer.

Hangzhou Yozea Electronic Co.,LTD is fast growing UF series Variable Common Mode Choke Inductors suppliers and manufacturer in China, specialized in manufacturing encapsulated transformer, high frequency transformer and inductor in China. we are located in Hangzhou with 260 employees, 50 technical engineers and quality control team, the production and operation area reaches 6000 square meters. Products are widely used in intelligent meters, intelligent collection terminals, smart homes, instruments, industry power supply, new energy vehicles, and oter fields. We got the CQC, VDE, CE, UL, RoHS and other certificates successively. You can OEM UF series Variable Common Mode Choke Inductors direct from us.

We focus on developing high-quality products for top-end markets. And our products are mainly exported to over 30 countries such as USA, Italy, Canada, Egypt, Netherlands，Mexico，Greece，Iran, India, Thailand, Russia, France, Turkey, New Zealand, Israel and etc.
